| CPU/Takt |
G65SC816 / 2.8 or 1 MHz |
| ROM (erweiterbar) |
128 KByte (1 MByte) |
| RAM (erweiterbar) |
256 KByte (8 MByte) |
| Custom Chips |
- |
| Textmodi |
|
| Grafikmodi |
|
| Sound |
|
| Tastatur |
detached typewriter style (ADB) |
| Schnittstellen |
headphone jack (klinke f)
serial modem (miniDIN8f)
serial printer (miniDIN8f)
game connector (DB9f & DIL16)
external floppy connector (DB19f)
RGB monitor output (DB15f)
composite video output (RCA f)
ADB port (miniDIN4f)
7 expansion slots (2*25 edge f)
memory expansion slot (2*22 edge f)
|
| Massenspeicher |
- |
| Größe: |
Breite |
| |
Höhe |
| |
Länge |
| |
Gewicht |
|
| 282 mm |
| 110 mm |
| 346 mm |
| 4.0 kg |
|
| Betriebssystem |
Applesoft II ROM BASIC
Integer BASIC
DOS, ProDOS, UCSD, CP/M
|
| Peripheriegeräte |
|
| angekündigt |
|
| released |
|
| discontinued |
December 1992 |
 "Apple IIgs board Rev. 0275-03 '89 (click for larger picture, 121k)")

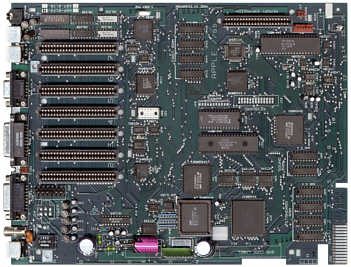

 "Apple IIgs board Rev. 0167-B '86 (click for larger picture, 115k)")
