Logitech M-BA47
Logitech M-BA47: top view (click for larger image, 65k)
top view (click for larger image, 65k)
buttons 2 + clickable wheel + 1 sideways
mechanism ball, optical sampling
interface USB ()
made by Logitech
controller CYP606805 3310912220 (Cypress)
2 SMD transistors
size:   width
  length
  height
  weight
65 mm
129 mm
46 mm
160 g
manufacturing date 2000
Logitech M-BA47: bottom view (click for larger image, 62k)
bottom view (click for larger image, 62k) 		Logitech M-BA47: inside (click for larger image, 75k)
inside (click for larger image, 75k)

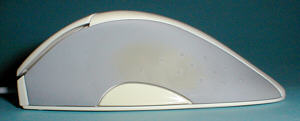

Logitech M-BA47: left side with button (click for larger image, 28k)
left side with button (click for larger image, 28k) 		Logitech M-BA47: left side with button (click for larger image, 51k)
left side with button (click for larger image, 51k)

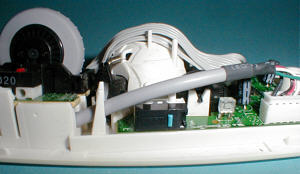

Logitech M-BA47: slanted wheel mounting (click for larger image, 60k)
slanted wheel mounting (click for larger image, 60k)
