Inside the Curta Type II

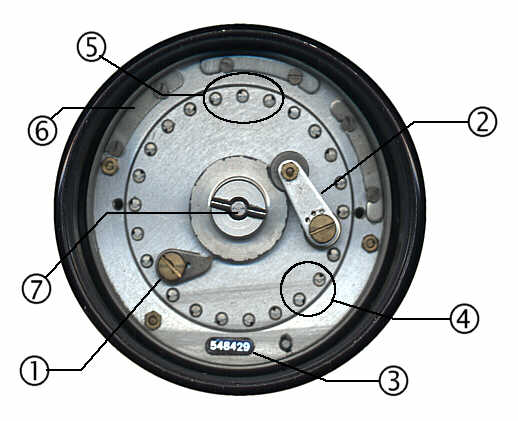

Curta Model II inside: bottom view

1 ratchet pawl which prevents the crank from turning in the wrong direction
2 spring loaded roller detent to lock the crank into the rest position after each turn
3 serial number
4 axle shafts of counter digits
5 axle shafts of result digits
6 cover of input sliders' axles
7 crank axle shaft

open Curta II (1) (click for larger picture, 28k)  open Curta II (2) (click for larger picture, 28k)  open Curta II (3) (click for larger picture, 25k)
